For observation of faint nebulae and star clusters in a wide and bright field of view
The R130Sf is a 130mm aperture Newtonian reflector that offers excellent light-gathering power, making it ideal for observing faint nebulae and star clusters. This model is perfect for beginners looking to start their astronomical journey with a large-aperture scope. It comes equipped with a motorized tracking system to follow celestial objects with ease.
AP-SM Equatorial Mount
The Advanced Polaris mount is a compact and user-friendly equatorial platform, ideal for both beginners and experienced observers. Designed for grab-and-go convenience, it provides stable support for your telescope and utilizes a friction control system for quick, precise movement. A wide range of optional accessories makes the mount highly versatile.

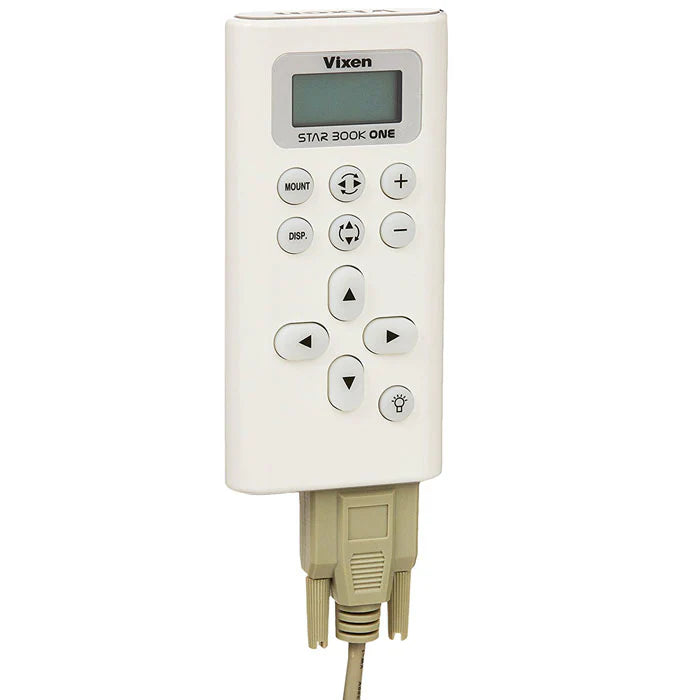

R.A. Motor Module and STAR BOOK ONE Set
This mount includes the R.A. motor module and STAR BOOK ONE controller set, which serves as the main motor for celestial tracking. It forms the foundation of the modular AP system, allowing for customized configurations by adding additional modules.
Stylish Design
The AP mount features a clean, modern design with a lightweight 3.6 kg body. It integrates four AA batteries internally and uses internal electrical contacts, eliminating the need for exposed external wiring.
Friction Control System
Manually point your telescope by hand—no knobs or clamps required. The friction control system makes it easy to track your target smoothly and intuitively.
Simple Polar Alignment
Beginners can easily align the polar axis using the optional polar meter, especially in locations where Polaris is not visible. For high-precision alignment, the standard polar axis scope can be used.
Polar Alignment Scope PF-L
The PF-L scope uses a three-star alignment system and features a built-in dark field illuminator with automatic shutoff. It pairs with the free “PFL Assist” app, which helps you visualize the constellation for quick and accurate alignment.
Power Supply System
Powered by four AA batteries (alkaline or rechargeable Ni-MH/Ni-Cd), the mount offers flexibility and portability. For extended sessions, connect a USB mobile battery or AC adapter via the built-in USB Micro-B port.

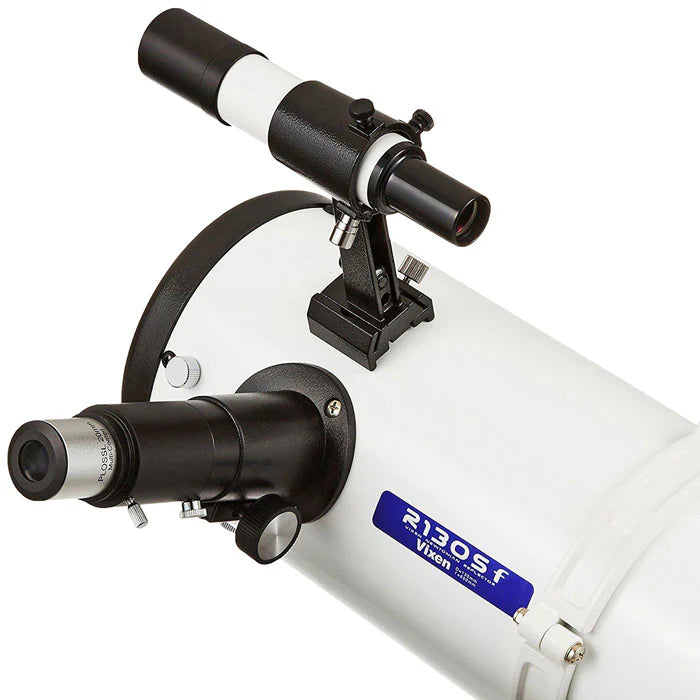

R130Sf Newtonian Reflector
With a 130mm aperture and a wide, bright field of view, this Newtonian reflector is optimized for deep-sky observations of nebulae and star clusters.
APP-TL130 Tripod
This compact, adjustable tripod extends from 60 cm to 130 cm and offers both the portability of a camera tripod and the strength needed for astronomical equipment. Its rubber or metal spike tips allow for indoor and outdoor use.
CA Residents: Prop 65 WARNING(S)
⭐ Features & Benefits
- 130mm Newtonian Reflector – Wide and bright field ideal for faint nebulae and clusters
- Friction Control System – Manual repositioning without clamps or knobs
- Motorized Celestial Tracking – R.A. motor module and STAR BOOK ONE controller included
- AP-SM Mount – Lightweight equatorial mount with internal wiring and modern design
- Simple Polar Alignment – Easy alignment even in non-visible Polaris locations with optional polar meter
- Optional PF-L Polar Scope – Dark field illumination with app-assisted alignment
- Multiple Power Options – Runs on AA batteries, USB mobile battery, or AC adapter
- APP-TL130 Tripod – Sturdy and lightweight, adjustable for indoor or outdoor use
🌟 Who It’s For
- Beginner astronomers looking for a complete telescope and tracking system
- Stargazers interested in deep-sky viewing without complex setup
- Users who want a sleek, modern mount that’s lightweight and field-ready
🎯 What You’ll Be Able to See
- Bright open clusters like the Pleiades and Beehive
- Nebulae such as the Orion and Dumbbell
- Lunar surface in rich detail
- Planets like Jupiter and Saturn with moons and rings
🎒 What’s Included
- R130Sf 130mm Newtonian Optical Tube
- AP-SM Equatorial Mount
- R.A. Motor Module & STAR BOOK ONE Controller
- APP-TL130 Adjustable Aluminum Tripod
- 6x30 Finderscope

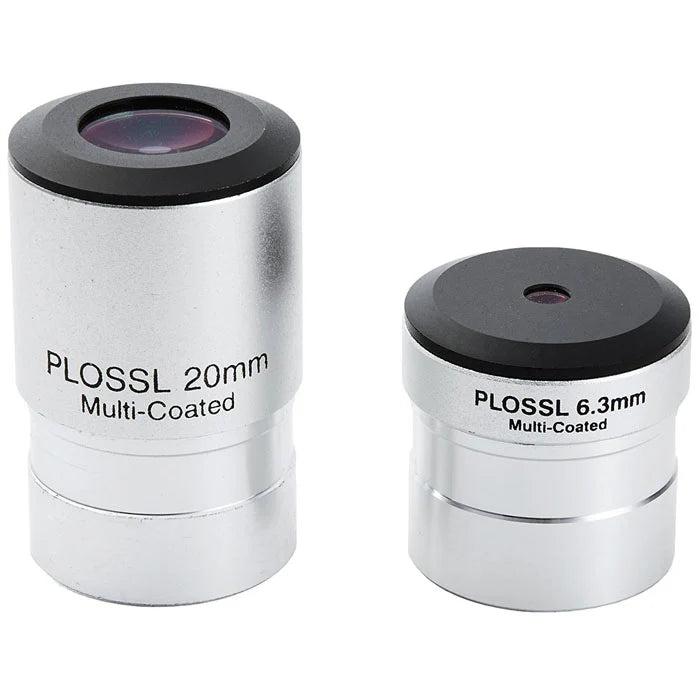

- PL20mm and PL6.3mm Eyepieces (1.25")
- Mounting Accessories & Visual Back
Specs
| Configuration | Optical tube assembly, AP-SM equatorial mount, Eyepiece, APP-TL130 tripod |
|---|---|
| Primary Mirror | 130 mm parabolic mirror, multicoated |
| Focal Length / F-Ratio | 650 mm (f/5) |
| Resolving Power / Limiting Magnitude | 0.89 arc seconds / 12.3 |
| Light-Gathering Power | 345x (compared to unaided eye) |
| Telescope Dimensions / Weight | 575 mm (L) x 160 mm (OD); 5.3 kg (tube only: 4.0 kg) |
| Finder Scope | 6x30 mm, 7° actual field of view |
| Visual Back | 43 mm thread, 42 mm T-ring compatible, 31.7 mm push-fit |
| Eyepieces (31.7 mm) | PL20 mm (33x), PL6.3 mm (103x) |
| Tripod Material / Type | Aluminum, 3-section adjustable legs |
| Tripod Dimensions / Weight | Length: 570–1,296 mm; Height: 526–1,159 mm; Closed: 598.4 mm; Radius: 350–710 mm; 3.0 kg |
| Total Weight | 15.2 kg (without battery and eyepiece) |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
