Discover intricate details of the Moon’s cratered surface, trace the elegant structure of Saturn’s rings, and explore the brightest deep sky objects in stunning clarity with the Explore Scientific ED127 FCD100 Carbon Fiber Triplet APO Refractor.

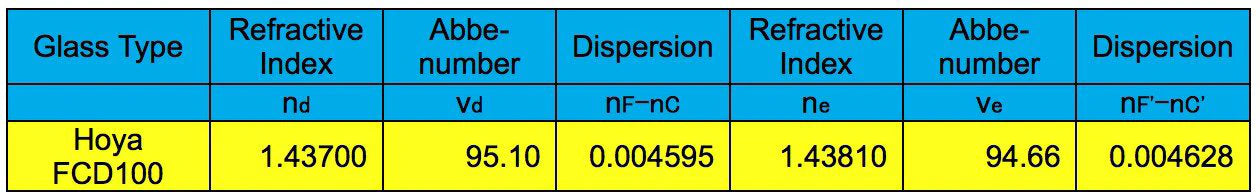

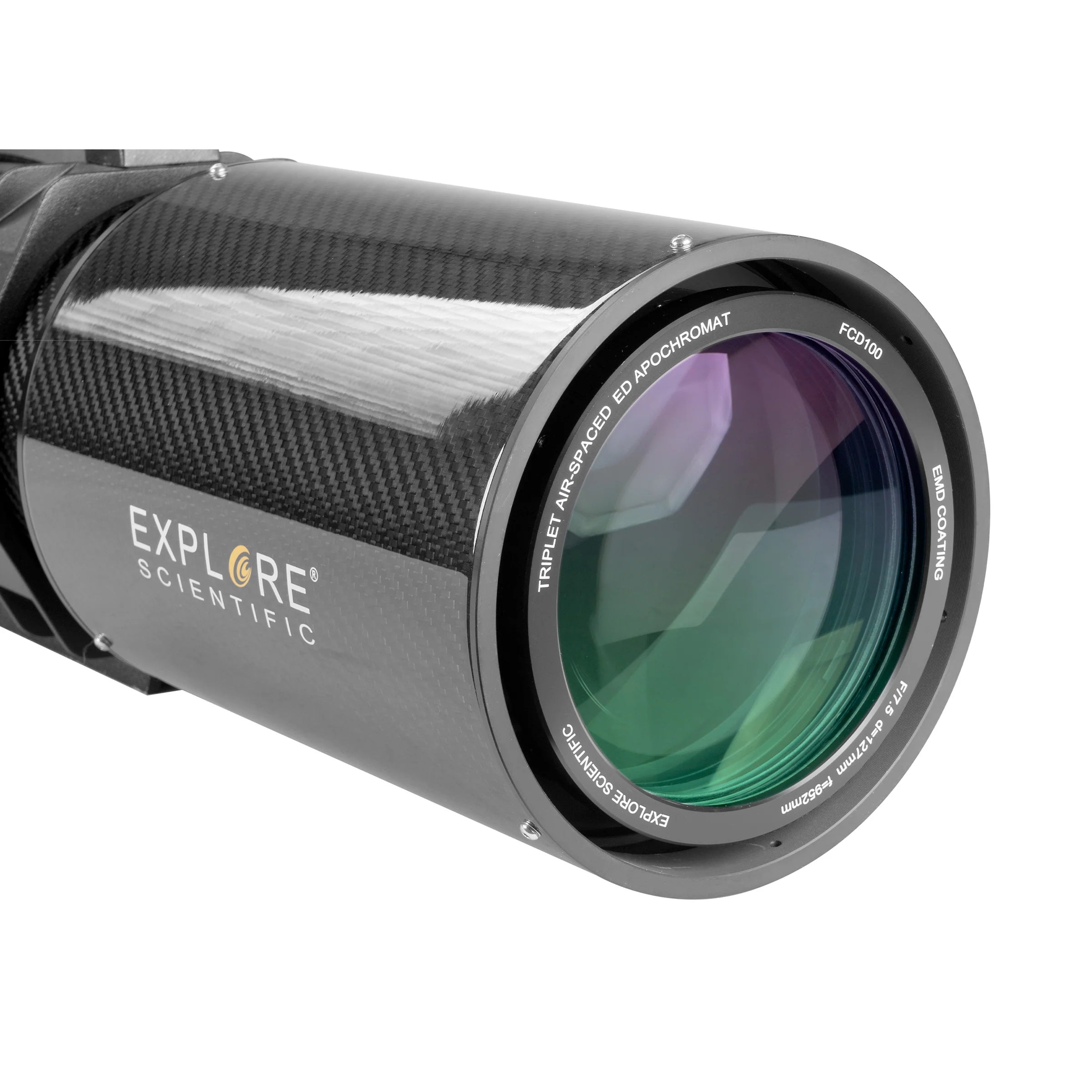

This model combines the proven design of the original EDT-127075-CF with an optical upgrade: HOYA FCD100 ED glass, renowned for its exceptional chromatic correction and optical characteristics comparable to Ohara’s FPL-53. Paired with high-index glass elements in an air-spaced triplet configuration, this telescope delivers crisp, color-pure, diffraction-limited performance across a wide range of targets.
All optical surfaces are coated with Explore Scientific’s proprietary EMD multi-layer coatings, improving light transmission and contrast for both visual observing and imaging.

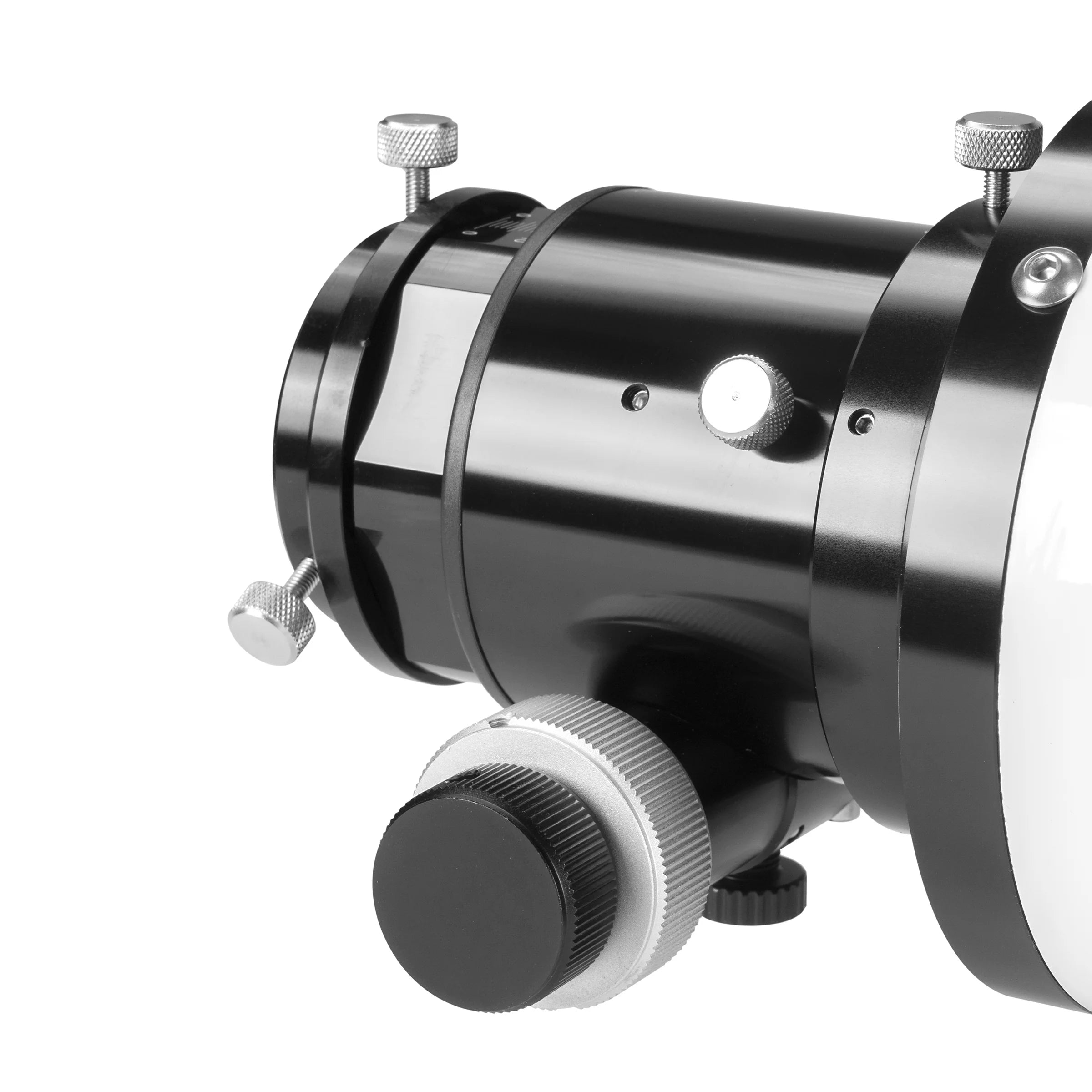

Built into a lightweight carbon fiber tube, the ED127 is designed for users who value stability, portability, and thermal control—qualities that benefit both field work and astrophotography. At the back end, it’s equipped with a 2.5" HEX focuser, a precision-machined component that supports up to 10 lbs of gear, providing rock-solid focusing for even demanding imaging setups.
CA Residents: Prop 65 WARNING(S)
⭐ Features & Benefits
- 127mm f/7.5 Air-Spaced Triplet Apochromat – Delivers exceptional resolution with true color fidelity
- HOYA FCD100 ED Glass – Industry-leading chromatic correction and contrast
- Carbon Fiber Optical Tube – Lightweight, thermally stable, and portable
- 2.5" HEX Focuser – Precision focusing support for up to 10 lbs of imaging equipment
- EMD Multi-Layer Coatings – Increases light transmission and reduces internal reflections
- True Diffraction-Limited Performance – Outstanding clarity for astrophotography or visual use
- Cradle Rings with Carry Handle – Easy mounting with included Vixen-style dovetail
- Integrated Dew Shield – Built-in protection against dew and glare
- Extension Tubes Included – For dialing in precise back focus
- Hybrid Finder Scope Base – Compatible with Explore Scientific finder accessories
🌟 Who It’s For
- Astrophotographers looking for a lightweight, high-performance apochromatic refractor
- Experienced visual observers wanting sharp planetary and deep-sky performance
- Traveling astronomers seeking a portable but capable imaging platform
- Educational institutions or outreach programs in need of premium optics
- Enthusiasts who want diffraction-limited performance in a robust, carbon fiber tube
🎯 What You’ll Be Able to See
- Razor-sharp lunar surface features like rilles, craters, and mountain ranges
- Saturn’s rings, Jupiter’s bands, and Mars during opposition
- Deep sky favorites like the Andromeda Galaxy, the Hercules Cluster, and the Orion Nebula
- Fine star clusters and nebulae with minimal chromatic aberration
- Stunning wide-field astrophotography captures with excellent color balance
🎒 What’s Included
- Explore Scientific ED127 FCD100 Carbon Fiber Triplet APO Refractor
- 2.5" HEX Focuser with heavy-duty support

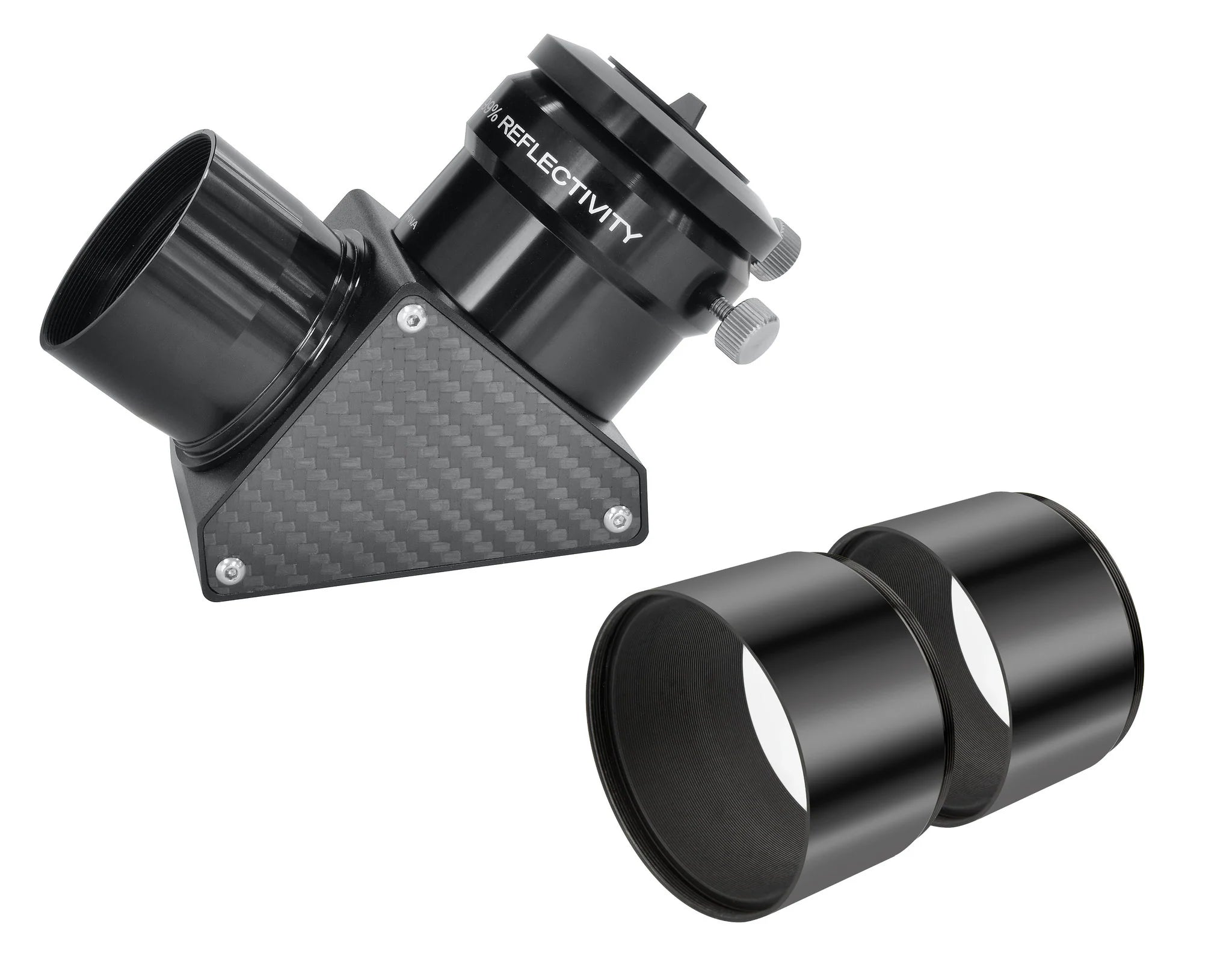

- Two extension tubes for back focus adjustment
- Cradle ring set with integrated carry handle
- Vixen-style dovetail plate
- Integrated dew shield

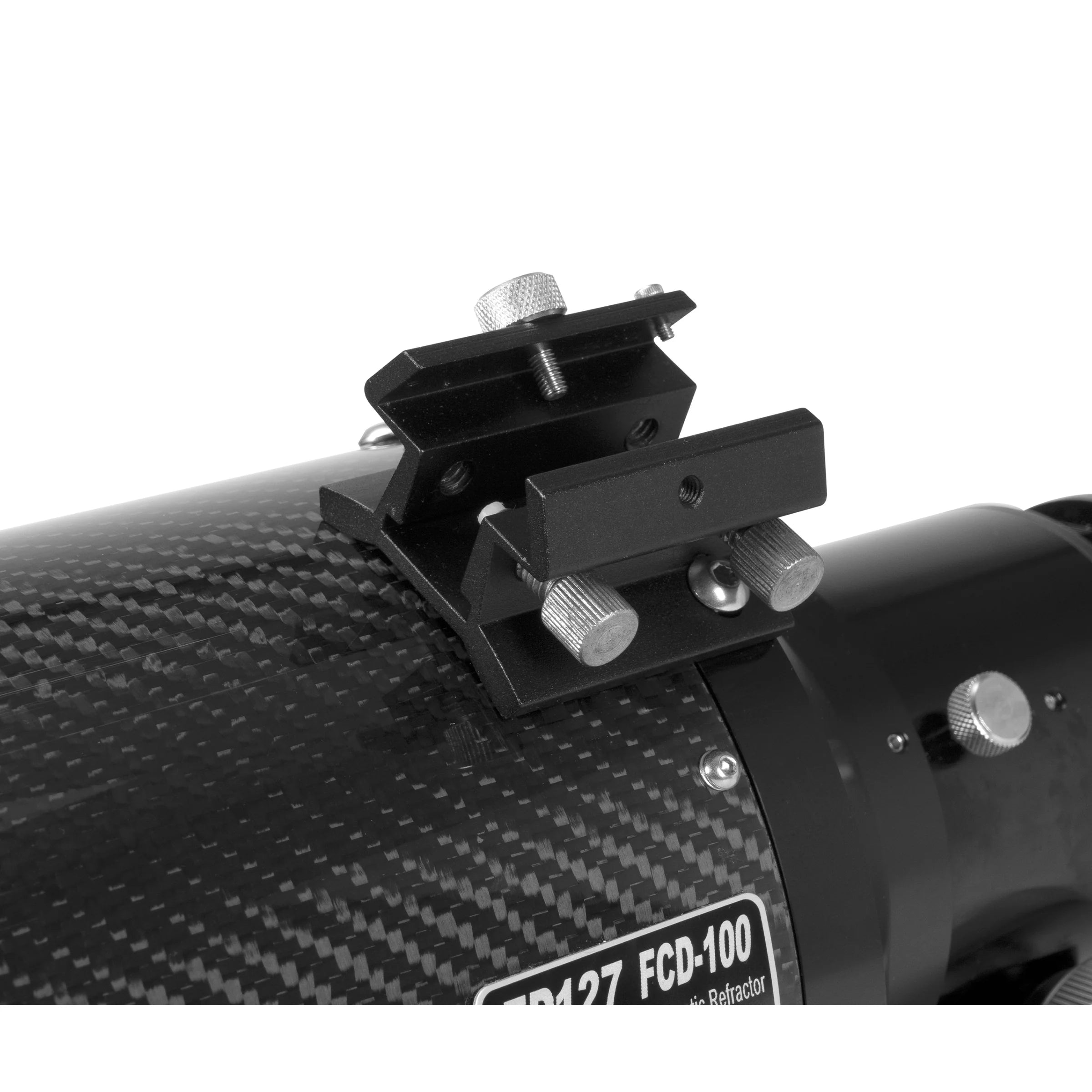

- 2N1 Hybrid Finder Scope Base (finder not included)
- 2" Diagonal Mirror (99% reflective)
- Documentation and quick start materials
Specs
| Item Number | FCD100–127075-CF-01 |
|---|---|
| Focal Length | 952 mm |
| Focal Ratio | f/7.5 |
| Limiting Magnitude | 13 |
| Resolution | 0.9 arcseconds |
| Tube Length (w/ Dew Shield) | 41.75 in (1060 mm) |
| Tube Length (w/o Dew Shield) | 33.25 in (849 mm) |
| Optical Tube Diameter | 145 mm |
| Weight | 14 lbs (6.4 kg) |
| Dovetail Plate | Vixen-style |
Warranty Information:
This product includes a Limited One-Year USA Warranty, which converts to the Explore STAR Transferable Extended Life of the Product Warranty when registered within 60 days of purchase.
To activate your warranty, register your product at:
www.explorescientific.com/pages/product-registration
