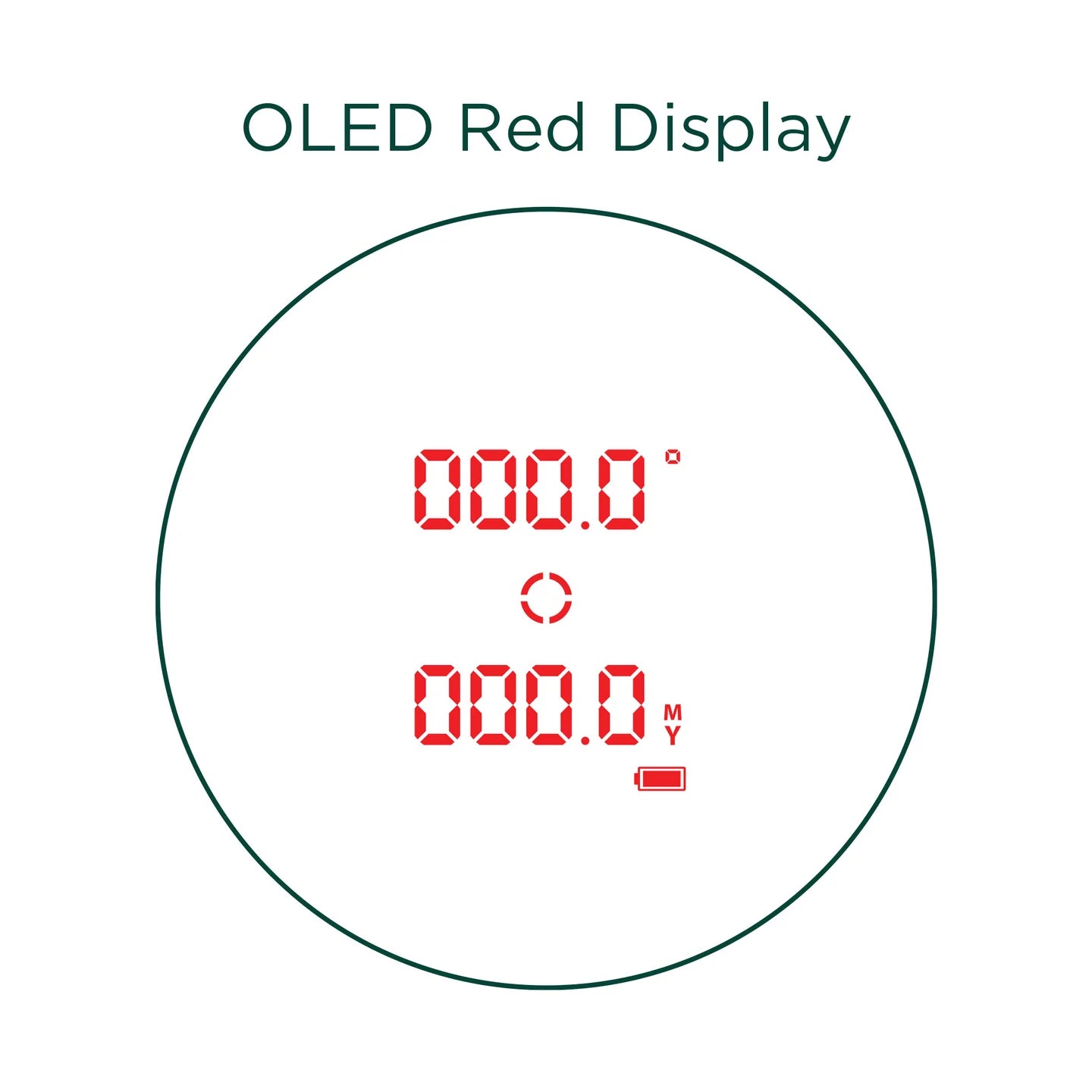

The Alpen CRESTONE XP 7x24 OLED Rangefinder is designed to provide all outdoor enthusiasts with fast, accurate distance measurements in all environments. Featuring 7x magnification and a 24mm objective lens, this rangefinder delivers clear, sharp visuals, while the adjustable red OLED display ensures optimal readability in both bright and low-light conditions.
Equipped with dual ranging modes, the Line of Sight Mode (LOS) gives true horizontal distance and angle measurements for precise shot adjustments, while the Horizontal Component Distance Mode (HCD) accounts for angled terrain, ensuring accurate ranging on sloped surfaces.
Built for outdoor use, the IPX4 water-resistant construction and ergonomic grip provide durability and comfort in all weather conditions. With a reflective target range of up to 2,500 yards and soft target range of 700 yards, the Alpen CRESTONE XP is perfect for all outdoor adventures. A protective case, lanyard, and CR2 battery are included for immediate use.
⚠️ Government Export Restriction:
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Click here to see out Terms of Sale and Export Policy
CA Residents: Prop 65 WARNING(S)
Features
- OLED Red Readout – Adjustable brightness for clear visibility in any lighting.
- Dual Measurement Modes – LOS (Line of Sight) & HCD (Horizontal Component Distance) for accurate and reliable ranging.
- Ergonomic & Compact Design – Contoured shape for secure grip and easy handling.
- Powerful 7x Magnification – 24mm objective lens for sharp, detailed visuals.
- Extended Range Capability – Measures hard targets up to 2,500 yards and soft targets up to 700 yards.
- Customizable Reticle – Six brightness levels for optimal performance in varying lighting conditions.
- Switchable Units – Allows you to choose between yards or meters.
- Water-Resistant (IPX4 Rated) – Built to withstand unpredictable weather.
- Multi-Coated Lens – Enhances light transmission for a crisp, clear view.
- Includes Case, Lanyard & Battery – Ready for use right out of the box.
The Alpen CRESTONE XP 7x24 OLED Rangefinder is a compact, powerful tool designed to meet the needs of all outdoor enthusiasts, delivering precision, durability, and ease of use in every scenario.
Specs
| Item Number | 890LR |
| Magnification | 7x |
| Objective Lens | 24mm |
| Transmission Diameter | 18mm |
| Field of View | 6.6° |
| Eye Relief | 0.55in / 14mm |
| Exit Pupil | 0.13in / 3.4mm |
| Diopter Focus | -3.0 - +3.0 |
| Waterproof | IPX4 Water-Resistant |
| Lens Coating | Multi-Coated |
| Auto-Off | 10 seconds |
| Units of Measure | Yards & Meters |
| Distance Range Min. | 5m/6yds |
| Distance Range Max. | 1828m/2500yds |
| Range Reflective Target | up to 1828m/2000yds |
| Range Building Target | up to 1280m/1400yds |
| Range Tree Target | up to 914m/1000yds |
| Range Deer Target | up to 640m/700yds |
| Range Response Time | <1.5 seconds |
| Range Accuracy < 100yds | ± 1yds |
| Range Accuracy 100yds - 1000yds | ± 2yds |
| Range Accuracy > 1000yds | ± 3yds |
| Inclinometer Max | ± 60° |
| Inclinometer Accuracy within ±30° | ±1° |
| Inclinometer Accuracy between ±30° - ±60° | ±2° |
| Battery Type | (1) CR2 |
| Scan Modes | LOS and HCD |
| Display Type | Red OLED |
| Laser Type | Class 3R |
| Operating Temperature Range | 14°F - 122°F (-10°C - 50°C) |
| Storage Temperature Range | -4°F - 149°F (-20°C - 65°C) |
