For observation of faint nebulae and star clusters in a wide and bright field of view

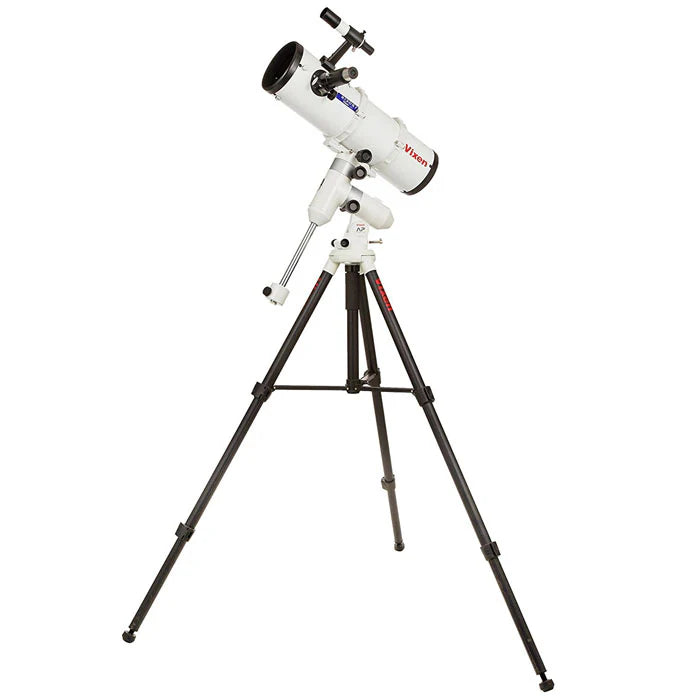

The AP-R130Sf is a 130mm aperture Newtonian reflector that offers excellent light-gathering power, making it ideal for observing faint nebulae and star clusters. This model is perfect for beginners looking to start their astronomical journey with a large-aperture scope. It comes equipped with a motorized tracking system to follow celestial objects with ease.
AP Equatorial Mount
The Advanced Polaris mount is a compact and user-friendly equatorial platform, ideal for both beginners and experienced observers. Designed for grab-and-go convenience, it provides stable support for your telescope and utilizes a friction control system for quick, precise movement. A wide range of optional accessories makes the mount highly versatile.
R.A. Motor Module and STAR BOOK ONE Set
This mount includes the R.A. motor module and STAR BOOK ONE controller set, which serves as the main motor for celestial tracking. It forms the foundation of the modular AP system, allowing for customized configurations by adding additional modules.
Stylish Design
The AP mount features a clean, modern design with a lightweight 3.6 kg body. It integrates four AA batteries internally and uses internal electrical contacts, eliminating the need for exposed external wiring.
Friction Control System
Manually point your telescope by hand—no knobs or clamps required. The friction control system makes it easy to track your target smoothly and intuitively.
Simple Polar Alignment
Beginners can easily align the polar axis using the optional polar meter, especially in locations where Polaris is not visible. For high-precision alignment, the standard polar axis scope can be used.
Polar Alignment Scope PF-L
The PF-L scope uses a three-star alignment system and features a built-in dark field illuminator with automatic shutoff. It pairs with the free “PFL Assist” app, which helps you visualize the constellation for quick and accurate alignment.
Power Supply System
Powered by four AA batteries (alkaline or rechargeable Ni-MH/Ni-Cd), the mount offers flexibility and portability. For extended sessions, connect a USB mobile battery or AC adapter via the built-in USB Micro-B port.

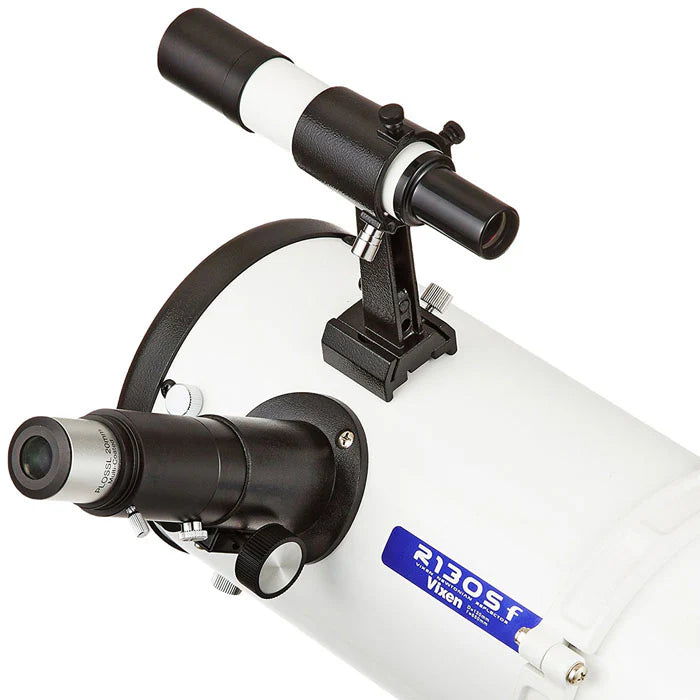

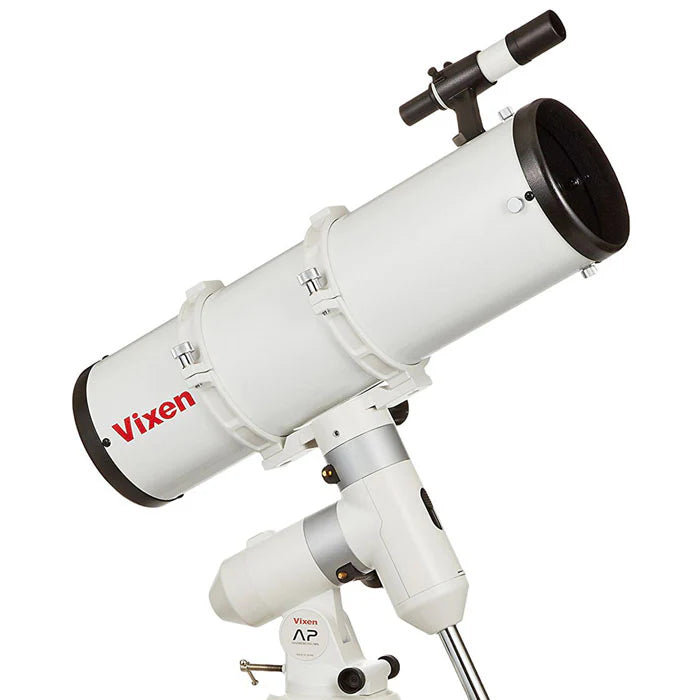

R130Sf Newtonian Reflector
With a 130mm aperture and a wide, bright field of view, this Newtonian reflector is optimized for deep-sky observations of nebulae and star clusters.
APP-TL130 Tripod
This compact, adjustable tripod extends from 60 cm to 130 cm and offers both the portability of a camera tripod and the strength needed for astronomical equipment. Its rubber or metal spike tips allow for indoor and outdoor use.
CA Residents: Prop 65 WARNING(S)
⭐ Features & Benefits
- 130mm Parabolic Primary Mirror – Excellent light-gathering capability ideal for observing faint deep-sky objects
- Fast f/5 Focal Ratio – Wide, bright field of view perfect for nebulae and star clusters
- Advanced Polaris (AP) Equatorial Mount – Stable, portable, and ideal for both beginners and experienced observers
- Friction Control System – Effortlessly manual adjustments without knobs or clamps
- Motorized Tracking with STAR BOOK ONE – Tracks celestial targets smoothly with preprogrammed object library
- Stylish & Lightweight Design – Integrated battery compartment and internal wiring for clean, cable-free operation
- Simple Polar Alignment Options – Compatible with optional Polar Meter and PF-L Polar Scope for easy setup
- Versatile Power Supply – Runs on 4 AA batteries or USB external power for flexible mobility
- APP-TL130 Adjustable Tripod – Durable, portable aluminum tripod with dual indoor/outdoor spike options
🌟 Who It’s For
- Beginners looking for a large-aperture telescope to explore deep-sky objects with ease
- Intermediate observers seeking a portable, motorized system with tracking capabilities
- Astronomy enthusiasts wanting a lightweight, modular equatorial mount for easy customization
- Urban stargazers or remote explorers in need of a compact, battery-powered setup
🎯 What You’ll Be Able to See
- Bright and detailed views of star clusters like the Pleiades and Hercules Cluster
- Faint nebulae such as the Orion Nebula and Lagoon Nebula with enhanced contrast
- Sweeping wide-field views of the Milky Way and other rich star fields
- Lunar surface details and planets like Jupiter and Saturn at moderate magnifications
🎒 What’s Included
- R130Sf 130 mm Newtonian Reflector Optical Tube
- AP Equatorial Mount with R.A. Motor Module & STAR BOOK ONE Controller
- APP-TL130 Adjustable Aluminum Tripod
- 6x30 mm Finderscope (7° Field of View)
- Two Eyepieces: PL20 mm (33x) and PL6.3 mm (103x) — 31.7 mm barrel
- Visual back with 43 mm thread, T-ring compatible, and 31.7 mm push-fit adapter
- Mounting accessories and hardware
Specs
| Configuration | Optical tube assembly, AP equatorial mount, Eyepiece, APP-TL130 tripod |
|---|---|
| Primary Mirror | 130 mm parabolic mirror, multicoated |
| Focal Length / F-Ratio | 650 mm (f/5) |
| Resolving Power / Limiting Magnitude | 0.89 arc seconds / 12.3 |
| Light-Gathering Power | 345x (compared to unaided eye) |
| Telescope Dimensions / Weight | 575 mm (L) x 160 mm (OD); 5.3 kg (tube only: 4.0 kg) |
| Finder Scope | 6x30 mm, 7° actual field of view |
| Visual Back | 43 mm thread, 42 mm T-ring compatible, 31.7 mm push-fit |
| Eyepieces (31.7 mm) | PL20 mm (33x), PL6.3 mm (103x) |
| Tripod Material / Type | Aluminum, 3-section adjustable legs |
| Tripod Dimensions / Weight | Length: 570–1,296 mm; Height: 526–1,159 mm; Closed: 598.4 mm; Radius: 350–710 mm; 3.0 kg |
| Total Weight | 15.2 kg (without battery and eyepiece) |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
